J30J‑25ZKP-30 25Pin Micro-D Connector with 30cm Cable Solder-Terminated J30J-25TJS

Grote Afbeelding : J30J‑25ZKP-30 25Pin Micro-D Connector with 30cm Cable Solder-Terminated J30J-25TJS

Productdetails:

Plaats van herkomst:	China
Merknaam:	BEDE
Modelnummer:	J30J-25ZKP-30 / J30J-25TJS

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	500
Prijs:	Onderhandelbaar
Levertijd:	basis op hoeveelheden
Betalingscondities:	T/T, Western Union
Levering vermogen:	3000pcs per dag

Contact

Gedetailleerde productomschrijving

Serie:	J30J-serie (MIL-DTL-83513-serie)	Aantal posities:	25
Shell-Materiaal:	aluminiumlegering met een hoge sterkte	Temperatuurbereik:	-55°C tot +125°C
connector vorm:	Socket en stekker

J30J‑25ZKP-30 25Pin Micro-D Connector with 30cm Cable Solder-Terminated J30J-25TJS

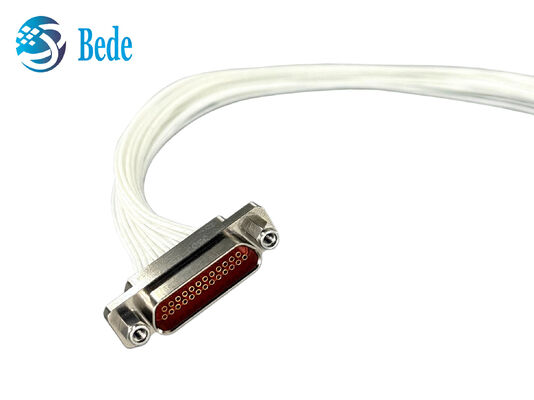

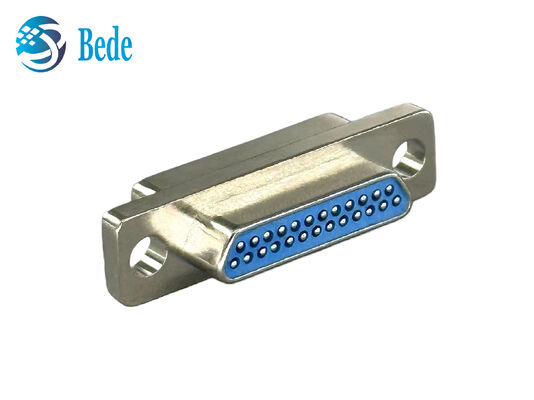

The J30J-25ZKP-30 is a 25-position pre-cabled female Micro-D receptacle engineered to fully conform to MIL-DTL-83513 specifications. Boasting tiny installation size, low weight, dependable conductivity, great shielding effect and strong vibration resistance, it has been extensively applied to space-restricted electronic facilities.

Specifications

Specification	J30J-25ZKP-30	J30J-25TJS
Number of Positions	25	25
Connector Gender	Receptacle (Female Socket)	Plug (Male Pin)
Operating Voltage	200V to 250V AC/DC	200V to 250V AC/DC
Rated Current	3 A per contact	3 A per contact
Temperature Range	-55 °C to +125°C	-55 °C to +125°C

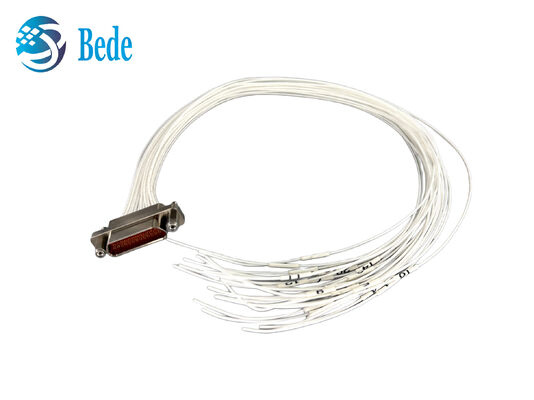

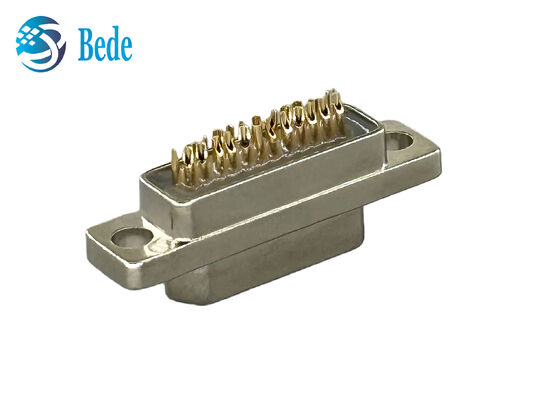

Wiring Spec	30 cm (~11.8 in) pre-crimped wire leads	Open cups for manual wire soldering

Product Features

This series is equivalent to USA MDM series
Ultra-Lightweight Profile: Uses a compact, precision-machined aluminum alloy shell that minimizes total system weight for airborne payloads.
Polarized Trapezoidal Shell: The D-shaped outer shell guarantees correct mating orientation and prevents accidental upside-down forced connections.
Mil-Spec Standards Alignment: Designed and verified in compliance with GJB 2446A and MIL-DTL-83513 performance metrics.
Elastic Twist Pins: The male plug uses a bundle of helically wound gold-plated wires compressed into a high-flexibility pin. This provides multiple redundant contact points within the sleeve.

Applications

Aerospace and Aviation
Harsh Environment
Energy and Medical Technologies

Customization Services

Custom connector plastic parts, such as insulator, nut, housing etc.
Custom connector internal conductors, male and female pins, with silver or gold plating
Custom connector accessories, such as silicone rings and dust covers
