AMP 3-1437290-7 26-Pin Superseal Automotive ECU Connector 3-Slots 9-6437287-8

Grote Afbeelding : AMP 3-1437290-7 26-Pin Superseal Automotive ECU Connector 3-Slots 9-6437287-8

Productdetails:

Plaats van herkomst:	China
Merknaam:	BEDE
Certificering:	RoHS
Modelnummer:	3-1437290-7/6437288-4
Document:	3-1437290-7 (1).pdf

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	500
Prijs:	Onderhandelbaar
Levertijd:	basis op hoeveelheden
Betalingscondities:	T/T, Western Union
Levering vermogen:	3000pcs per dag

Contact

Gedetailleerde productomschrijving

Serie:	AMP-SUPERSEAL 1.0	Pin:	Speld 26
Vrouwelijk onderdeelnr.:	3-1437290-7	Mannelijk Onderdeelnr.:	9-6437287-8
Materiaal:	PA66+GF-behuizing, vertinde/vergulde koperen aansluitingen	Temperatuurbereik:	-40°C~+125°C
Waterdichte beoordeling:	IP65
Markeren:	26-Pin Automotive ECU Connector , 3-Slots Automotive ECU Connector , Superseal Automotive ECU Connector

AMP 3-1437290-7 26-Pin Superseal Automotive ECU Connector 3-Slots 6437288-4

The 26-pin AMP SUPERSEAL 1.0 connector is engineered for harsh automotive environments. This complete assembly includes a right-angle male PCB pin header (for soldering to ECUs and control modules) and a female wire harness socket with an integrated red rubber seal, ensuring reliable wire-to-board connections and excellent sealing performance. Compact, durable, and high-performance, it is an ideal solution for demanding automotive electronic applications.

Product Specifications

Component	Features	TE Part Number	Specification
Pin / Cavity Count	26 positions (24 signal positions + 2 dummy blind holes, 4-row layout: 6+7+7+6)	-	Multi-signal & power transmission
Contact Pitch	1.0mm	-	Standard SUPERSEAL 1.0 spacing
Rated Current	Up to 15A per contact (compatible with 0.5~1.25mm² automotive wire harness)	-	High-current automotive application
Operating Temperature	-40℃ to +125℃	-	Engine bay suitable
Housing Material	PA66+GF (glass-filled nylon, UL94 V-0 flammability rating)	-	High-strength automotive-grade material
Contact Material	Copper alloy, gold-plated / tin-plated finish (anti-oxidation, enhanced conductivity)	-	High-reliability electrical contact
Mounting Style	Male: right-angle PCB solder type; Female: wire harness crimp type	-	PCB & wire harness installation

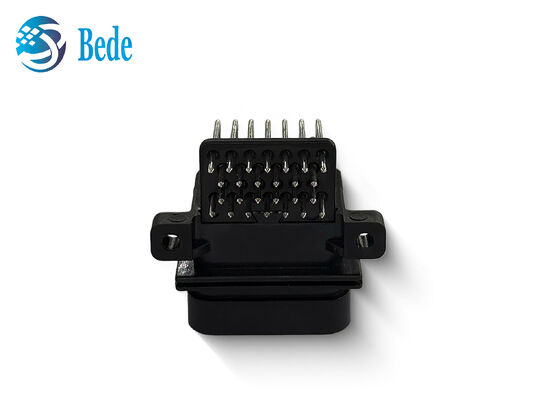

Male Header (PCB Side)	Black PA66+GF, 26-pin right-angle pins, mounting holes	9-6437287-8	Right-angle PCB solder type
Female Housing (Wire Side)	Black PA66+GF, silicone seal, 26-hole 4-row layout, latch	3-1437290-7	Wire-to-board, IP65

Product Features

Automotive-grade reliability, shockproof and temperature resistant
IP65 waterproof and dustproof for harsh environments
High-density 26-pin right-angle design saves ECU space
100% compatible with TE/AMP original parts
Easy crimping and PCB soldering for mass production

Applications

Traditional Fuel Vehicles: Wire harness connection for ECUs, transmission controllers, BCMs, ABS and other electronic control units
New Energy Vehicles: Board-to-wire connection for VCU, BMS, MCU, OBC and other core electronic control components
Other Fields: Industrial electronic control systems (construction machinery, commercial vehicles, agricultural machinery) requiring high protection and reliability

Installation: Solder male header to PCB; crimp female housing to harness and lock.

Notes: Avoid seal damage, align correctly, operate within rated specifications, and install in a clean environment.
